So I ended up with a custom cell, which is widened up to 30" and pushed 3" forward to help avoid cantilevering more weight out behind the wheels, with a chamfer on the back to keep it basically invisible from the rear.
Go Back

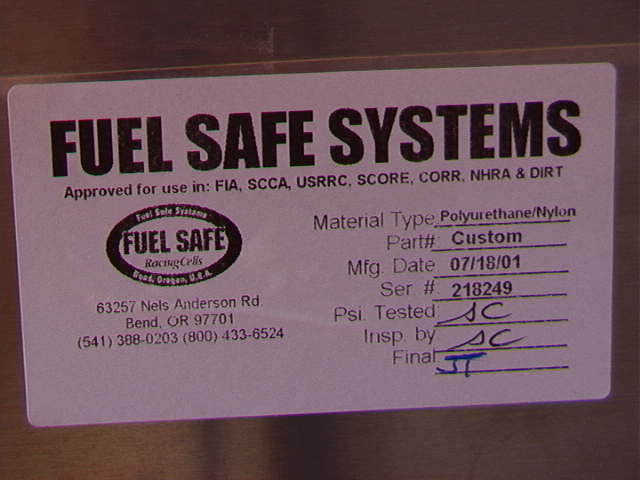

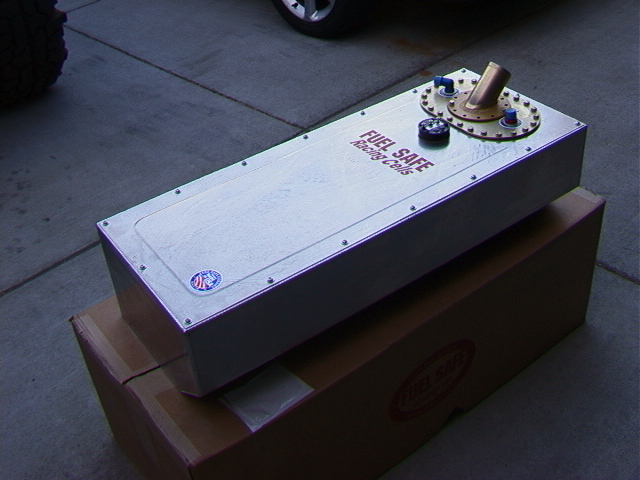

| Custom fuel cell built by Fuel Safe.
|
|
I didn't like the poor safety factor of the donor tank, so a fuel cell was a must.
The Mustang fuel cell has enough holes in it to make me question its ability to
actually contain the gas, not to mention to mention a side fill plate with no
flapper valve. The view of the tank hanging down below the body isn't very
attractive either. So I ended up with a custom cell, which is widened up to 30" and pushed 3" forward to help avoid cantilevering more weight out behind the wheels, with a chamfer on the back to keep it basically invisible from the rear. |
|
| |
|

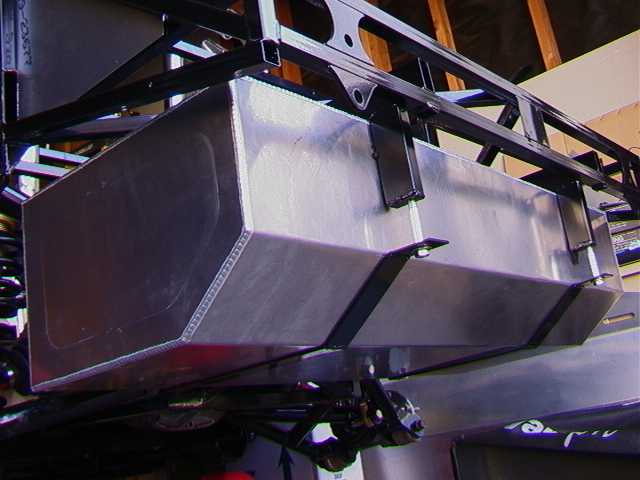

| Custom brackets |
|
| |
|

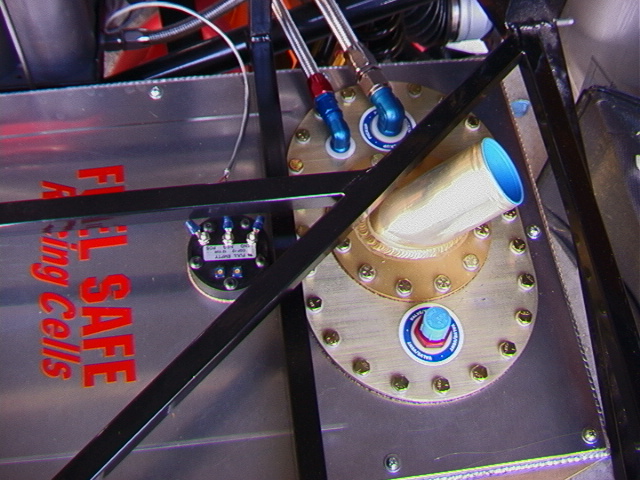

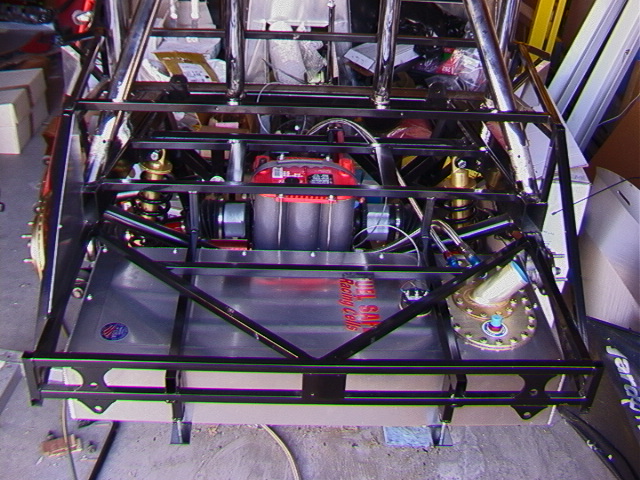

| The fill plate is as far forward and right as
possible, without losing the triangulated bracing. |
|

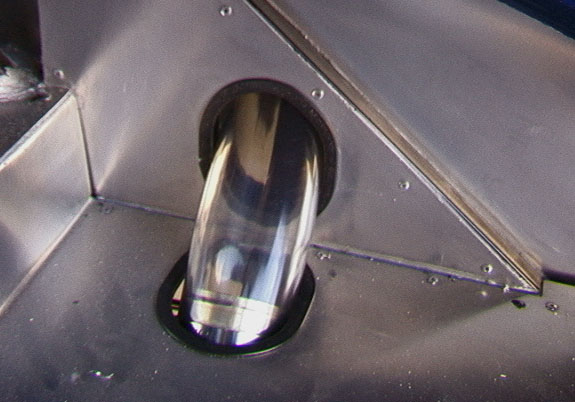

| Small intrusion into the trunk, which avoids cutting intothe frame or breaking the rules with a side mounted fill plate. |
|
|
